Single tooth restoration with one All-Ceramic Implant Solution in the anterior region

Two-piece ceramic implants from  the latest generation (ZrO2) are trending in the dental market nowadays because of its excellent biological and material technology characteristics as the alternative treatment option compared to titanium implants [1-11]. The handling and the Workflow now correspond to the Demands of modern implantology. The successful use of two-piece Ceramic implants is presented in this clinical case.

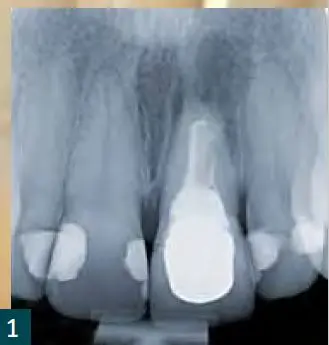

Initial clinical and radiological situation: tooth 21 with apical osteolysis.

Case presentation

A 40-year-old patient presented with a tooth 21 that was not worth preserving in our jaw surgery practice before (Fig. 1). The tooth film shows an approx. 7 mm in size apical lightening with widening of the periodontal gap in the upper third of the root (Fig. 1). In view of the clinical situation (high smile line, good oral hygiene) decided we are looking for a two-part ceramic implant Zeramex XT (Dentalpoint AG).

Surgical phase

After extraction of tooth 21, the excochleation of the apical granulation tissue via a semilunar incision (Fig. 2). To avoid failure of the ossification of the ceramic implant and the soft tissue structures (papillae, to protect attached gingiva), we chose a two-stage one Action. A clampless prosthesis made of Valplast served as a temporary restoration. Region 21 was opened after five months (Fig. 3). A two-part ceramic implant Zeramex XT (ø 4.2x L 12 mm) was incorporated (Fig. 4, 5).

Representation of the bone defect via semilunar incision with intra-alveolar position of the teat.
Bone deficit after reopening

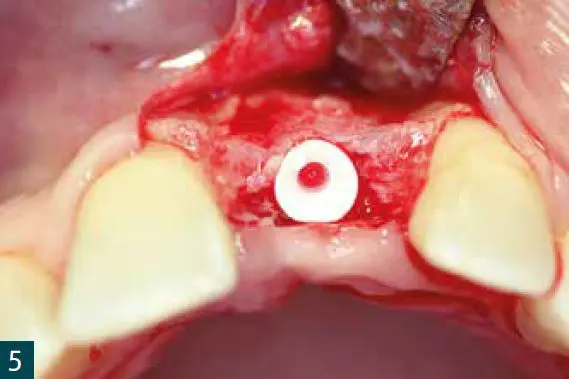

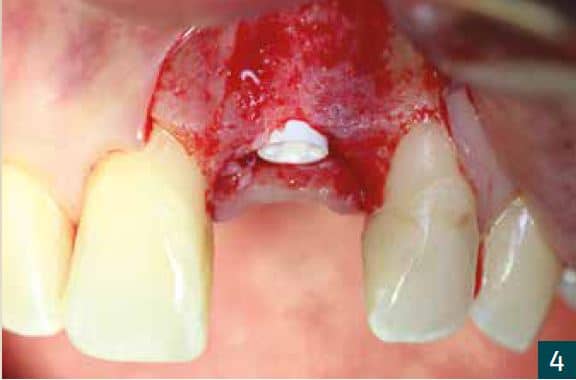

Incorporated two-part ceramic implant Zeramex XT sagittal view ...

The guidelines of implantation in the anterior region and the Adherence to the drilling protocol of the manufacturer was observed. In addition to the transversal, the vertical insertion depth is crucial for a prosthetic success. Because of a special thermal etching process in the collar area the implant can be inserted between 1.6 and 0.6 mm supracrestally, the insertion depth depending on the Gingival height and the existing bone of the neighboring teeth oriented (Fig. 4, 5).

... and from occlusal.
Bone build-up in the vestibular region 21.
Subsequent cover with a membrane.
Clinical condition after exposure
X-ray control after exposure

Since the abutments are applied at least one millimeter from the level of the implant shoulder, the implant should be positioned approximately two to three millimeters subgingivally. The transverse bone structure was mixed from autologous bone chips (retromolar UK), xenogeneic Bone replacement (Bio-Oss) and a membrane (Jason membrane) performed (Fig. 6, 7). After four months, the Exposure using a PEEK gingiva former (Fig. 8, 9).

Individual components: temporary crown, provisional Abutment (PEEK) and temporary screw (PEEK-CW 30).

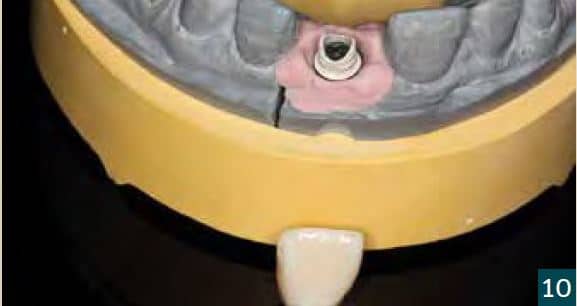

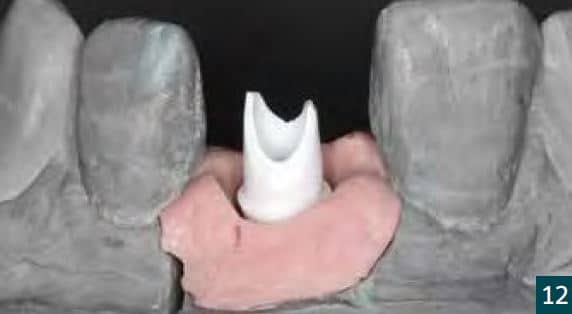

Components on the model.
Customized abutment made of zirconium oxide with Vicarbo screw from sagittal.

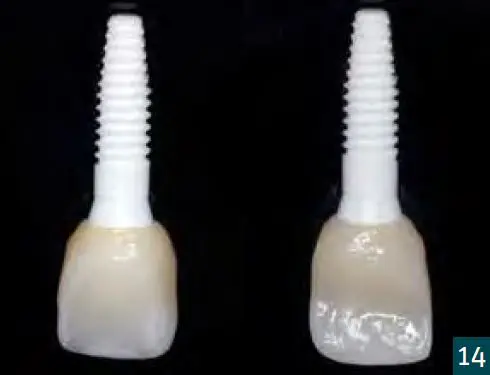

Individually layered, definitive ceramic crown with ceramic structure and ceramic implant from labial and palatal.

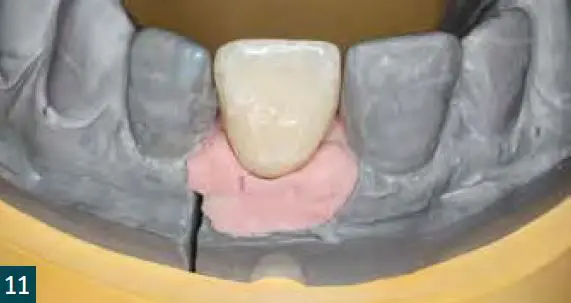

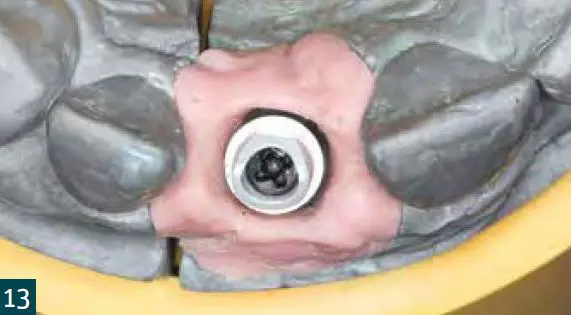

Occlusal view on the master model for the definitive one Care.
Crown in place

Prosthetic phase

For optimal contouring of the marginal gingiva Achieving a crown in the highly aesthetic zone made from Gradia, a micro-ceramic composite. Dental film recordings (right angle technology) and the DBSWINSoftware (Dürr-Dental). There is a bone breakdown for six months (mesial bone: 0.5 mm; distal bone: 0.4 mm) and a bone structure for twelve months (mesial bone: 0 mm; distal bone: 0.3 mm) after exposure (Fig. 8, 19, 20). The yellow line on the X-ray images corresponds to the actual implant length (13.6 mm). The red lines correspond to the mesial and distal distances from the top edge of the implant to the first bone contact measured.

Harmonious end result with Gummy Smile.

In our patient, the bone breakdown was in accordance with the literature in the first six months largest. However, the information in the literature in the Contrary to our supply based on one-piece ceramic implants. This phenomenon of bone cultivation is in implantology relatively rare and should be included Evidence-based long-term examinations should be backed up before one general statement. Evaluations are in progress.

Soft tissue situation after six months.
Condition after twelve months with slight improvement 20 the mesial papilla.

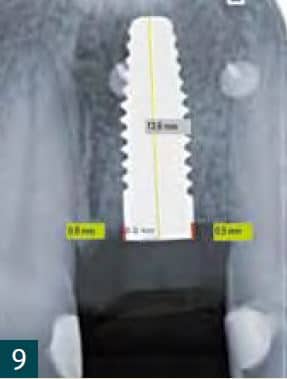

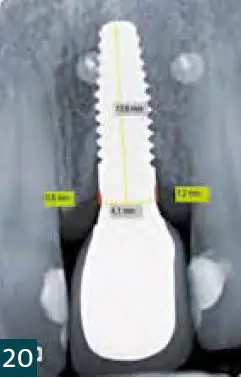

X-ray results six months after Exposure.

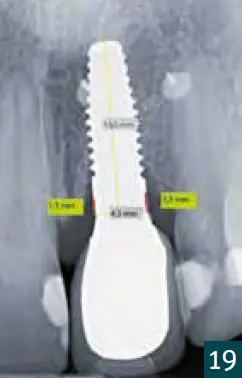

Results of the X-ray evaluation twelve months after Exposure


Ceramic implants are a good addition to the titanium implants Alternative. Has the advantages of ZrO2-Ceramic itself once you get to know them, you learn to appreciate them and want to no longer do without it.

In addition to the possibility of metal-free restoration she and others For many risk groups, taking into account the indication, a useful addition to the previous treatment spectrum. He believes that the material is relatively new but somewhat different Author user training recommended. This demand for training in handling new materials will also increasingly discussed in the literature.
