ZERAMEX®XT Transfer Closed Tray, long ,RB – RB36513
ZERAMEX® Prosthetics RB – Plattform

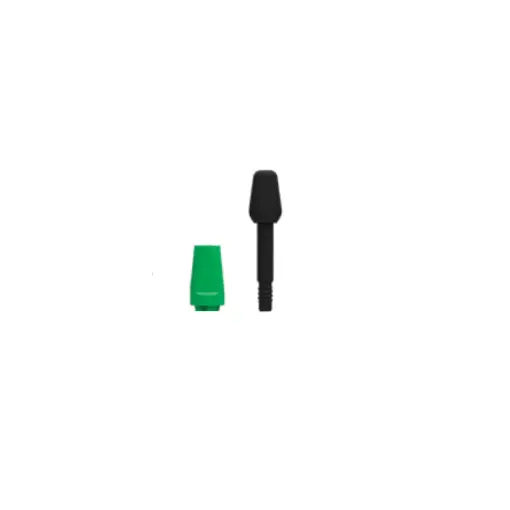

ZERAMEX®XT Transfer Closed Tray, long, RB
Sleeve height: 11mm
Height incl. screw: 18mm
Material: PEEK-CW30,
Aluminum
| Auxiliary parts | Name | Dimension | material |
|---|---|---|---|
| ZERAMEX® XT Transfer Closed Tray, long RB | Sleeve height: 11mm Height incl. screw: 18mm | PEEK-CW30,
Aluminum |
TAKING IMPRESSIONS
Closed tray:
1. Positioning: Place the transfer sleeve on the external hexagon under slight pressure while turning until it snaps into the hex head socket, rests securely on the implant shoulder, and can no longer be rotated.
2. Screwing tight: Tighten the
lukewarm locking pin clockwise,
and check the position for a form-fit.
In case of doubt, take an X-ray.
3. Taking an impression:
Prepare the impression with a
closed tray and remove. Unscrew the
locking pin, remove the transfer from the implant, and give the transfer and impression to the dental technician.
4. Connecting: Place the transfer sleeve on the external hexagon under slight pressure while turning it until it snaps into the hex head socket of the implant replica, rests securely on the shoulder, and can no longer be rotated. Screw the lukewarm locking pin tight clockwise.
5. Reposition and create a model: Reposition the transfer in the impression with the screwed-on implant replica and ensure that the seat is secure. Create a master model.
6. Restoration: Select a secondary component depending on the prosthetic requirements and the related procedure. Straight and angular screw-retained abutments (more on page 29) and straight and angular cemented abutments and Locator® (more on page 37) are available.
Open tray:
1. Positioning: Place the transfer sleeve on the conditions. external hexagon under slight pressure while turning until it snaps into the hex head socket, rests securely on the implant shoulder, and can no longer be rotated.
2. Screwing tight: Screw the transfer sleeve hand-tight. Tighten the lukewarm locking pin clockwise, and check the position for a form-fit. In case of doubt, take an X-ray.
3. Taking an impression: Create the impression with an open tray. Unscrew and remove the locking pin. Remove the impression, and give it to the dental technician with the locking pin.
4. Connecting: Place the implant replica on the external hexagon under slight pressure while turning until it snaps into the transfer sleeve, rests securely on the shoulder, and can no longer be rotated. Tighten the locking pin clockwise under lukewarm conditions.
5. Creating the model: Reposition the transfer with the screwed-on implant replica, and make sure that the seat is secure. Create a master model. Remove the locking pin before removing the impression.
6. Restoration: Select a secondary component depending on the prosthetic needs and the preferred procedure. Straight and angular screw-retained abutments (more on page 29) and straight and angular cemented abutments and Locator® (more on page 37) are available.
IMPRESSION TAKING
| Taking impressions | Art no. | name | dimension | Link |
|---|---|---|---|---|
| RB36510 | ZERAMEX® XT Transfer Open Tray RB | Sleeve height: 11mm Height incl. screw: 20mm | |
| RB36512 | ZERAMEX® XT Transfer Closed Tray RB | Sleeve height: 7mm Height incl. screw: 14mm | |
RB36513 | ZERAMEX® XT Transfer Closed Tray, long RB | Sleeve height: 11mm Height incl. screw: 18mm | ||
| RB36514 | ZERAMEX® XT Scanbody RB (incl. Screw) | Height: 10mm |
| Weight | 0.2 kg |
|---|---|
| Dimensions | 8 × 8 × 8 cm |
| Description |
