ZERAMEX®XT LAB Screw/ Try in SB, RB, and WB – RB36554

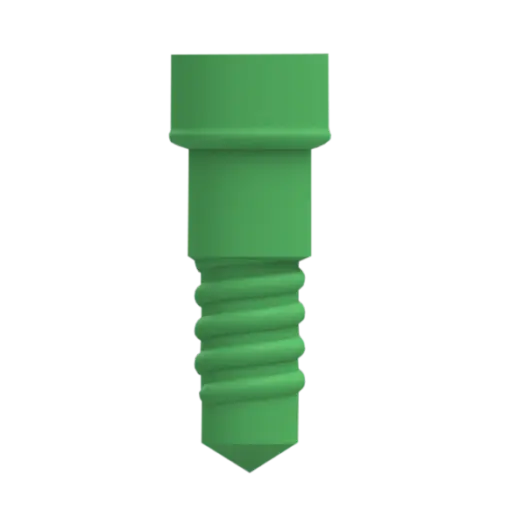

The heart of the connection is the VICARBO® screw.
It works like a bolt, which anchors the abutment in the implant. The extremely hard ceramic is combined with a very stiff, carbon fibre-reinforced high-performance peek. In a way similar to reinforced concrete, the ceramic absorbs the compressive forces, while the VICARBO® screw counteracts tensile forces.

It is characterised by excellent isoelastic properties and demonstrates clear strengths: It is metal-free, biocompatible according to ISO 10993 for long-term implants and nestles into the given contour.

This is also proven by the technical values:

• Modulus of elasticity: 110 GPa.
• Bending strength: Greater than 1.100 MPa.
• Tensile strength: 2.000 MPa (comparison: Grade 5 titanium: 1.000 MPa).

The continuous carbon fibres running parallel to the mould durably absorb the tensile forces and give the VICARBO® screw its high strength.
