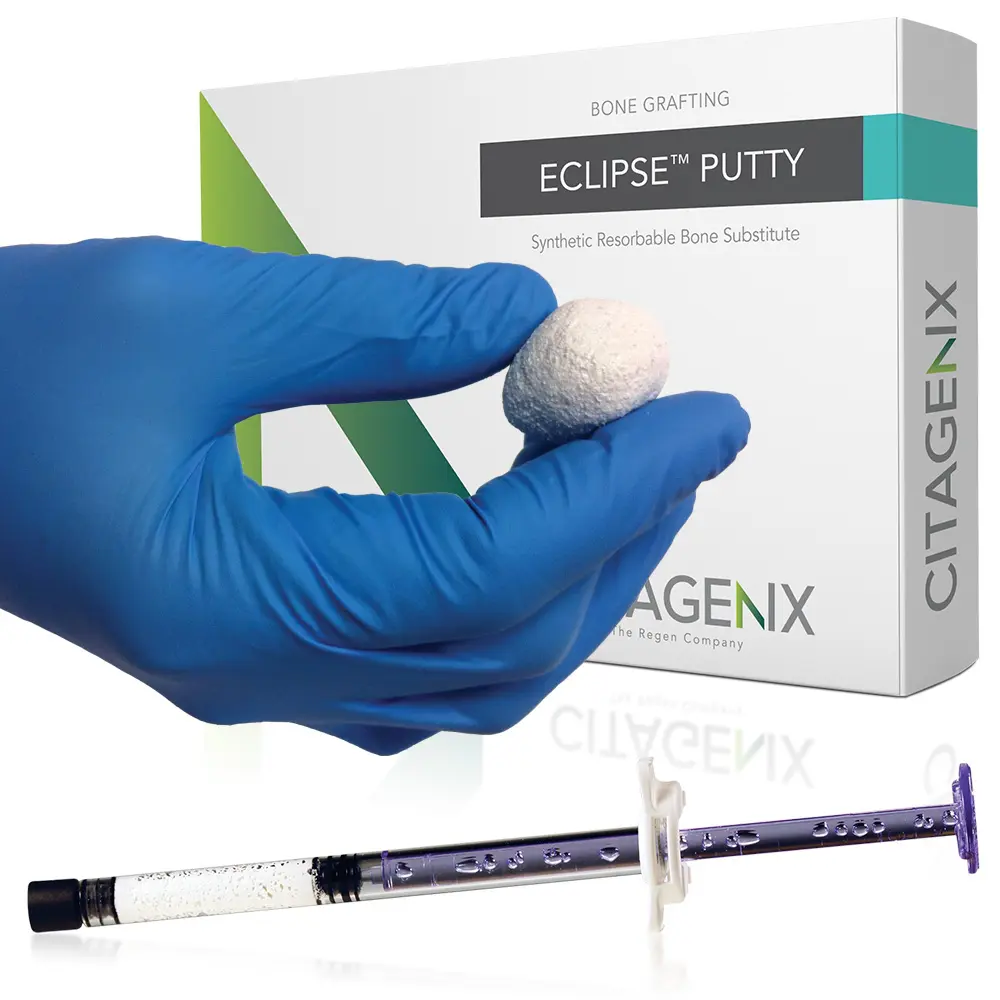

Eclipse™ Putty | 100% Synthetic – Injectable Bone Substitute
Using the mineral building blocks naturally found in human bone, Eclipse™ goes a step beyond the realm of everyday hydroxyapatite (HA) and tricalcium phosphate (TCP) with its unique combination of micro and macroporosity technology.
The Eclipse key to balanced bone regeneration is its unique ratio between micro and macro porosity and its unique ratio between HA and ß-TCP.

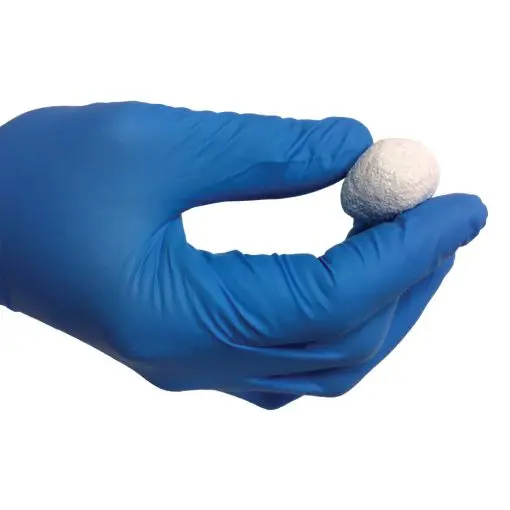

Eclipse™ Putty is an innovative and moldable bone graft, composed of Hydroxyapatite (HA), Beta Tricalcium Phosphate (ß-TCP) and a hydrogel.
By combining the complete interconnectivity of Eclipse granules with a carrier, the handling properties are greatly enhanced.
40 – 45% Hydrogel (highly diluted HPMC)

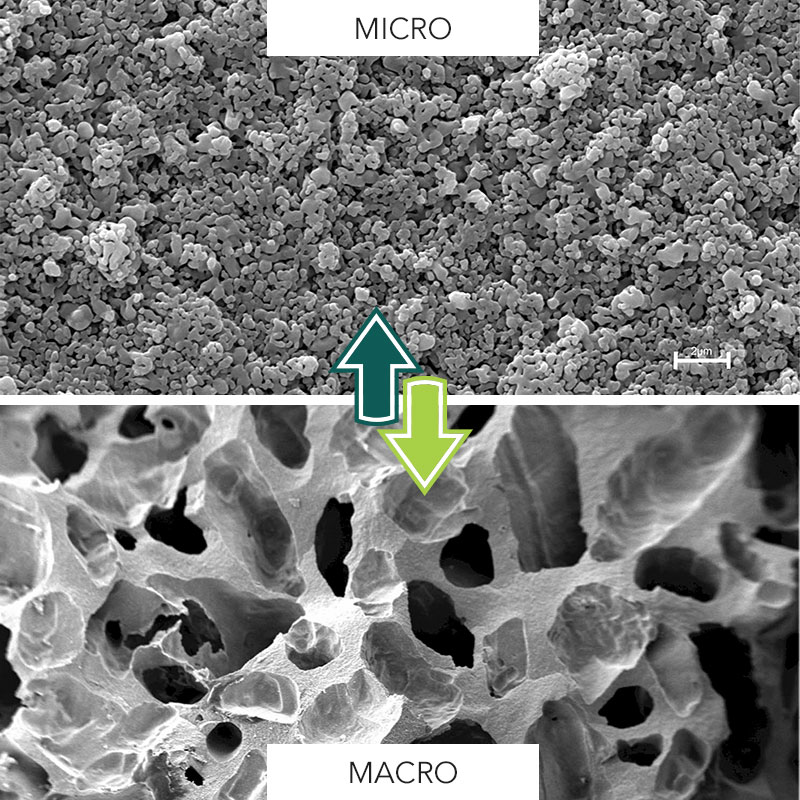

Micro & Macro ratio
Microporosity (pores <10µm) allows the diffusion of biological fluids, by the capillary action, into the three-dimensional matrix. Inside the fine pores of the matrix, biological fluids dissolve ß-TCP producing calcium phosphate ions that are released back into the biological fluids. This saturation of ions leads to precipitation of apatite crystal identical to that of the natural bone minerals. Shortly afterwards, this process creates a surface that promotes bone cell adhesion.
Macropores (300 to 600 µm) promote a deep invasion of osteogenic cells by osteoconduction. Through the same resorption and formation cycle as the natural bone remodeling process, new bone increases progressively at the expense of Eclipse.
Synthetic resorbable bone substitute
• For patients who express concerns with allografts and xenografts
• Completely remodels to host bone
• 25 years of clinical experience
• Macro and Micro pores allow complete remodeling
• Completely remodels to host bone while preserving volume (12-18 months*)
*Resorption and bone regeneration times are estimates as each patient and case is unique.

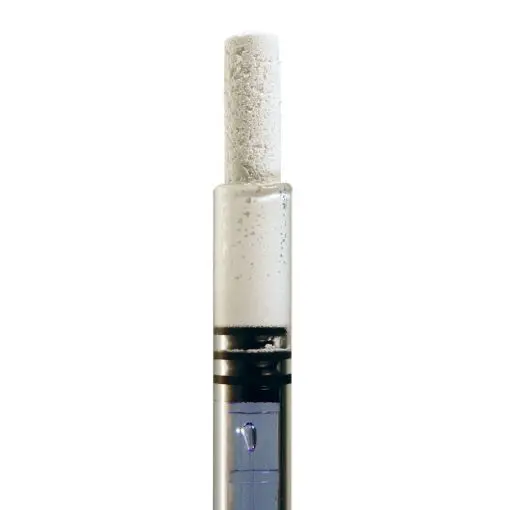

Eclipse Putty is available in syringes of:
· 0.5 cc
· 1.0 cc
