Piezomed Instruments

Efficient and Atraumatic

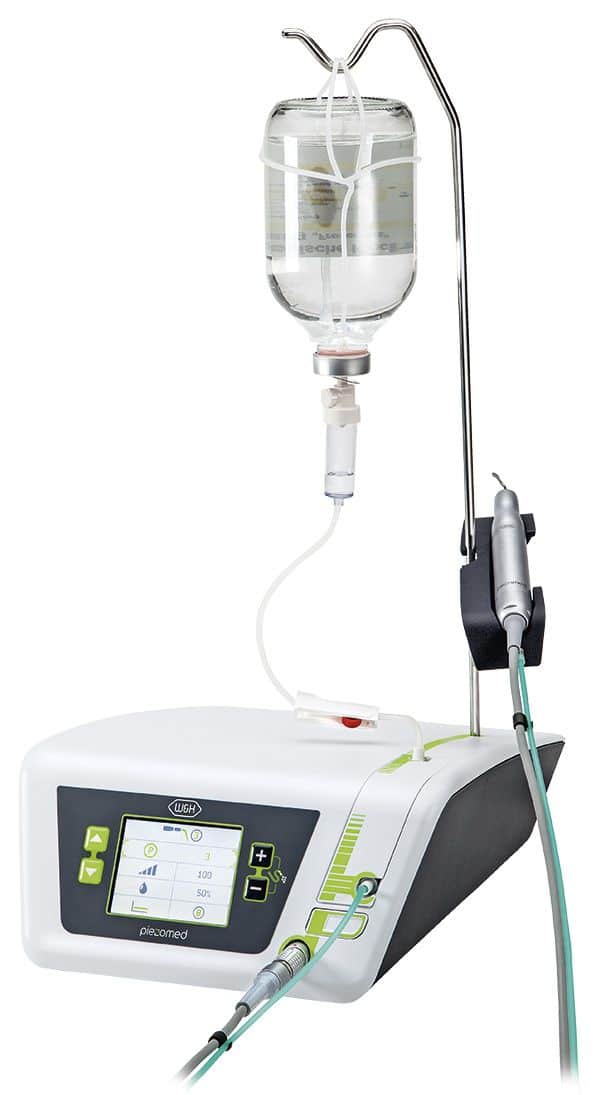

The W&H Piezomed instrument range includes different instruments for bone surgery, periodontology and extraction, for retrograde endodontics and for lateral sinus lift. As soon as an instrument is inserted, Piezomed automatically detects the instrument and assigns it to the correct power class. This not only facilitates operation but also increases safety. In addition, the risk of overloading the instruments is reduced and the service life of your instruments considerably extended!

Piezomed Tips (Instrument kit )

Consists of: B1, B2R, B2L, B3, B4, B5

Consists of: S1, S2, S3, S4, S5

Consists of: R1D, R2RD, R2LD, R3D, R4RD, R4LD

Consists of: P1, P2RD, P2LD

Consists of: EX1, EX2

Consists of: I1, I2A, I3A, I4A, Z25P, Z35P

Consists of: I1, I2P, I3P, I4P, Z25P, Z35P

Instruments for bone surgery

Fine-toothed saw for fine cuts, with little bone loss when harvesting bone blocks.

Fine-toothed instrument for horizontal cuts, with little bone loss, in hard-to-reach areas. Right-curved and left-curved models available.

Sharp instrument for modelling and contouring the bone surface, as well as for collecting bone chips.

Sharp chisel for splitting the alveolar ridge.

Sharp scraper for collecting bone chips and detaching bone flaps.

Special saw for fine and deep cuts in record time. Especially suitable for harvesting bone blocks, splitting the alveolar ridge, separating tooth roots and for root-tip resections.

Instruments for lateral sinus lift

Diamond-coated instrument for preparation of a bone flap for lateral sinus floor augmentation and for crown edge extensions.

Instrument with diamond-coated ball for preparation of a bone flap for lateral sinus floor augmentation and for crown edge extensions.

Instrument for gentle detachment of the Schneiderian membrane from the bone. The coolant film protects the Schneiderian membrane by means of three coolant openings.

Instrument with rounded edges for atraumatic detachment of the Schneiderian membrane.

Instruments for extraction

Instrument for atraumatic tooth extraction to preserve the alveolar bone.

Instrument for atraumatic tooth extraction to preserve the alveolar bone..

Instruments for retrograde endodontics

Straight, diamond-coated instrument for retrograde root canal preparation.

Slightly right-curved, diamond-coated instrument for retrograde root canal preparation.

Slightly left-curved, diamond-coated instrument for retrograde root canal preparation.

Angled, diamond-coated instrument for retrograde root canal preparation.

Strongly right-curved, diamondcoated instrument for retrograde root canal preparation.

Strongly left-curved, diamond-coated instrument for retrograde root canal preparation.

Instruments for periodontology

For removing concretions in the subgingival region. Ideal for treatment of deep, periodontal pockets.

Right-curved, diamond-coated tip for periodontal debridement. Especially suitable for open root planing.

Left-curved, diamond-coated tip for periodontal debridement. Especially suitable for open root planing.

Preparation of the implant site and crestal sinus lift

Diamond-coated instrument with depth marks for pilot preparation with the correct axial alignment.

Diamond-coated instrument for expansion of the pilot hole (up to a diameter of 2.5 mm) in the cortical area.

Instruments for gradual preparation of the implant bed (2 to 3 mm) up to the desired depth. A = anterior region P = posterior region

Diamond-coated instrument for expansion of the pilot hole (up to a diameter of 3.5 mm) in the cortical area.

Instruments for preparation of the implant bed (4 mm) up to the desired depth. A = anterior region P = posterior region

An instrument which is diamondcoated on the front face with internal coolant supply for preparing the base of the sinus and for lifting the Schneiderian membrane using a cooling medium.
